Stratum®

A vibrant, innovative alternative to traditional weatherboards, Stratum® is an endlessly adaptable range of weatherboard products. Choose one Stratum® profile as a standalone, or mix'n'match two or three to create eye-catching and original exterior cladding.

Stratum is designed with a shiplap join, meaning installation is quicker and easier and the smooth profiles come pre-primed to speed up the painting process.

Features and benefits

Features easy shiplap joining for a seamless finish.
Smooth profiles are primed and ready for painting, saving preparation time.
Quick, simple installation: manual nailing, gun nailing or screw fixing.
Horizontal or vertical Installation.
BRANZ Appraise no.’s 847 and 1060.
Can achieve a 30 and 60 min Fire Rating.

Profiles

Stratum®

A 300mm wide weatherboard.

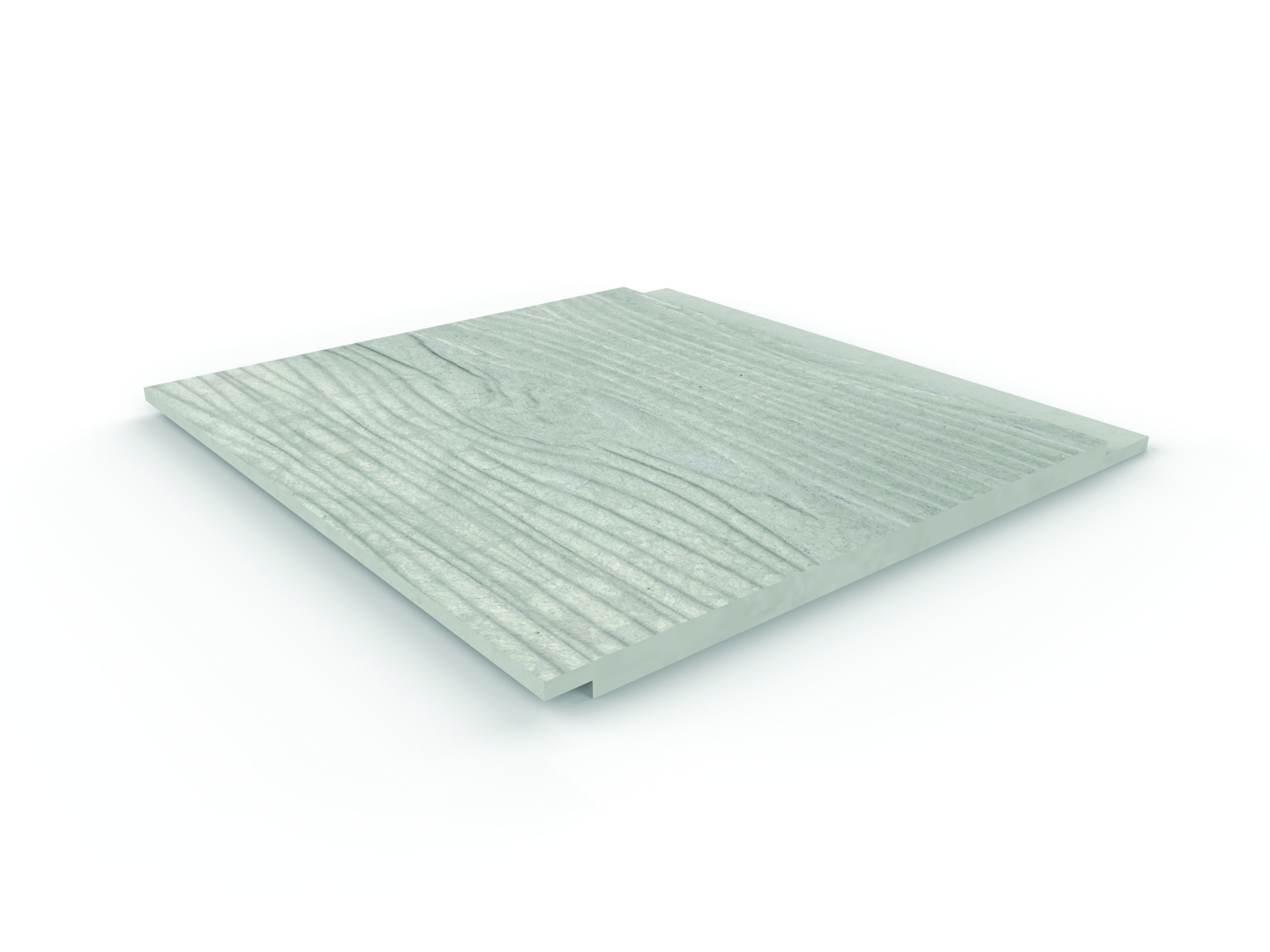

Stratum® Woodgrain

A 300mm wide weatherboard embossed with a woodgrain pattern giving a timber like appearance.

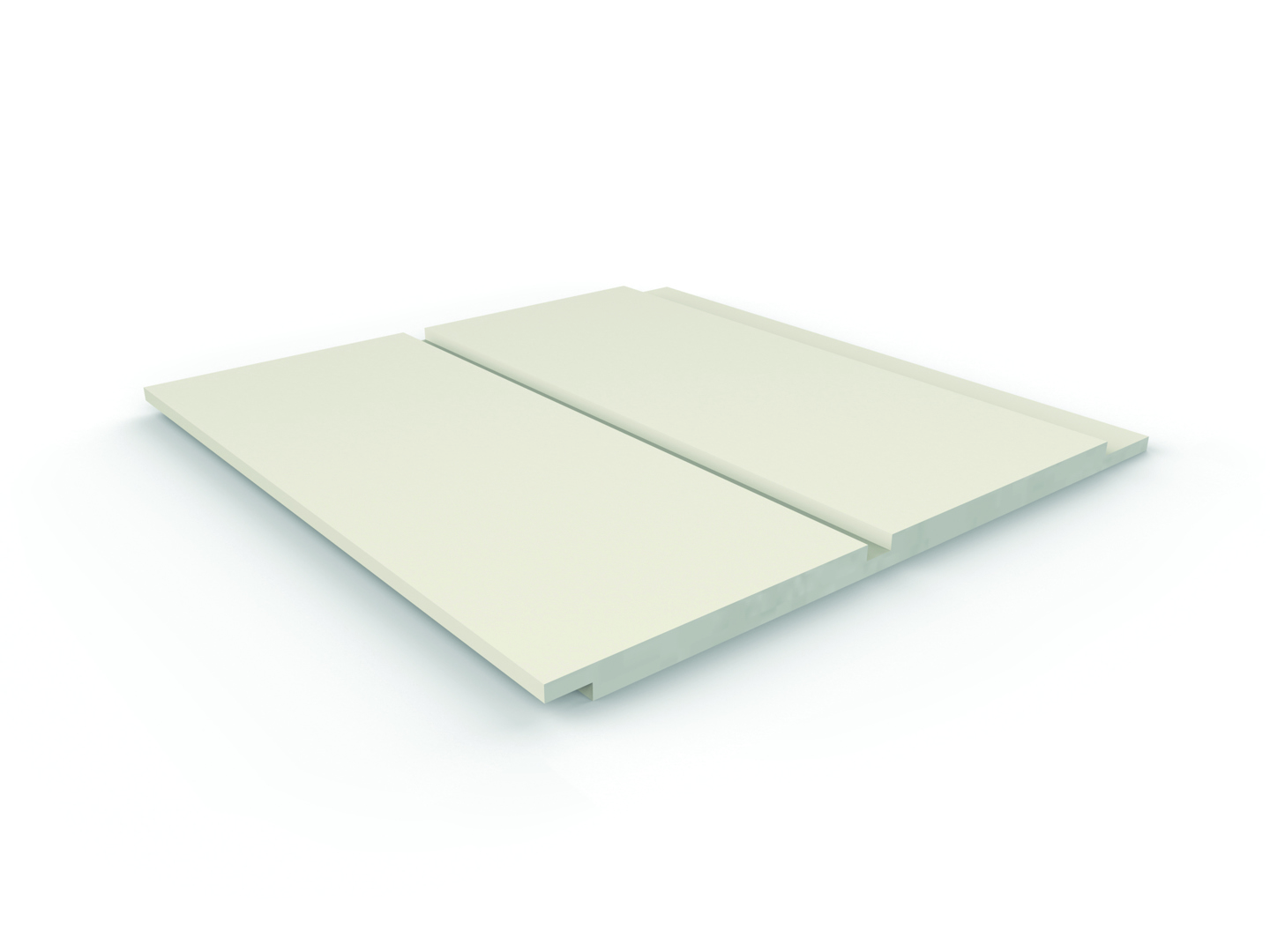

Stratum® Duo

A 300mm wide weatherboard with a 16mm centre groove and the look of two slimmer weatherboards.

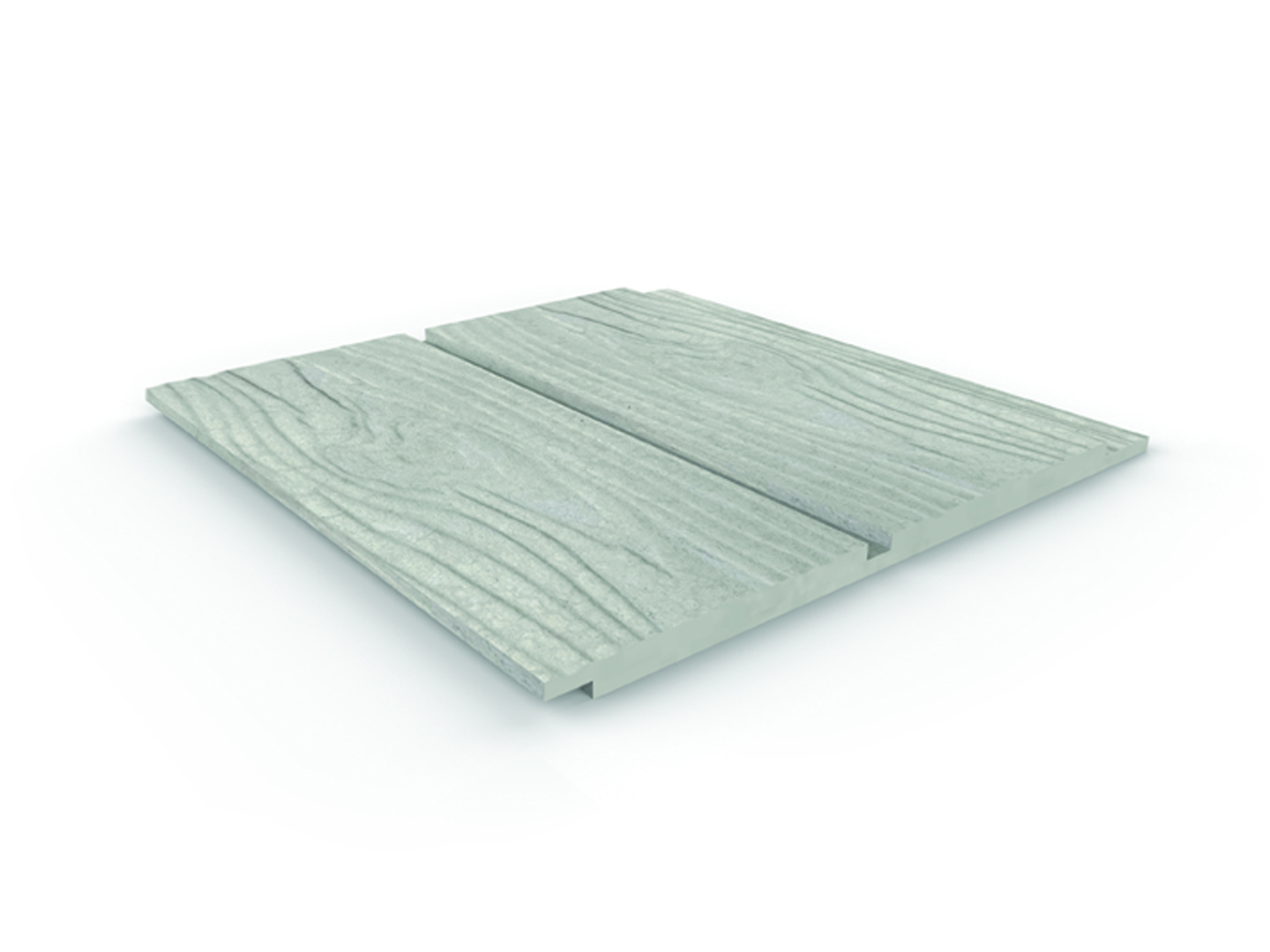

Stratum® Duo Woodgrain

A 300mm wide weatherboard with a 16mm centre groove and the look of two slimmer weatherboards embossed with a woodgrain pattern giving a timber like appearance.

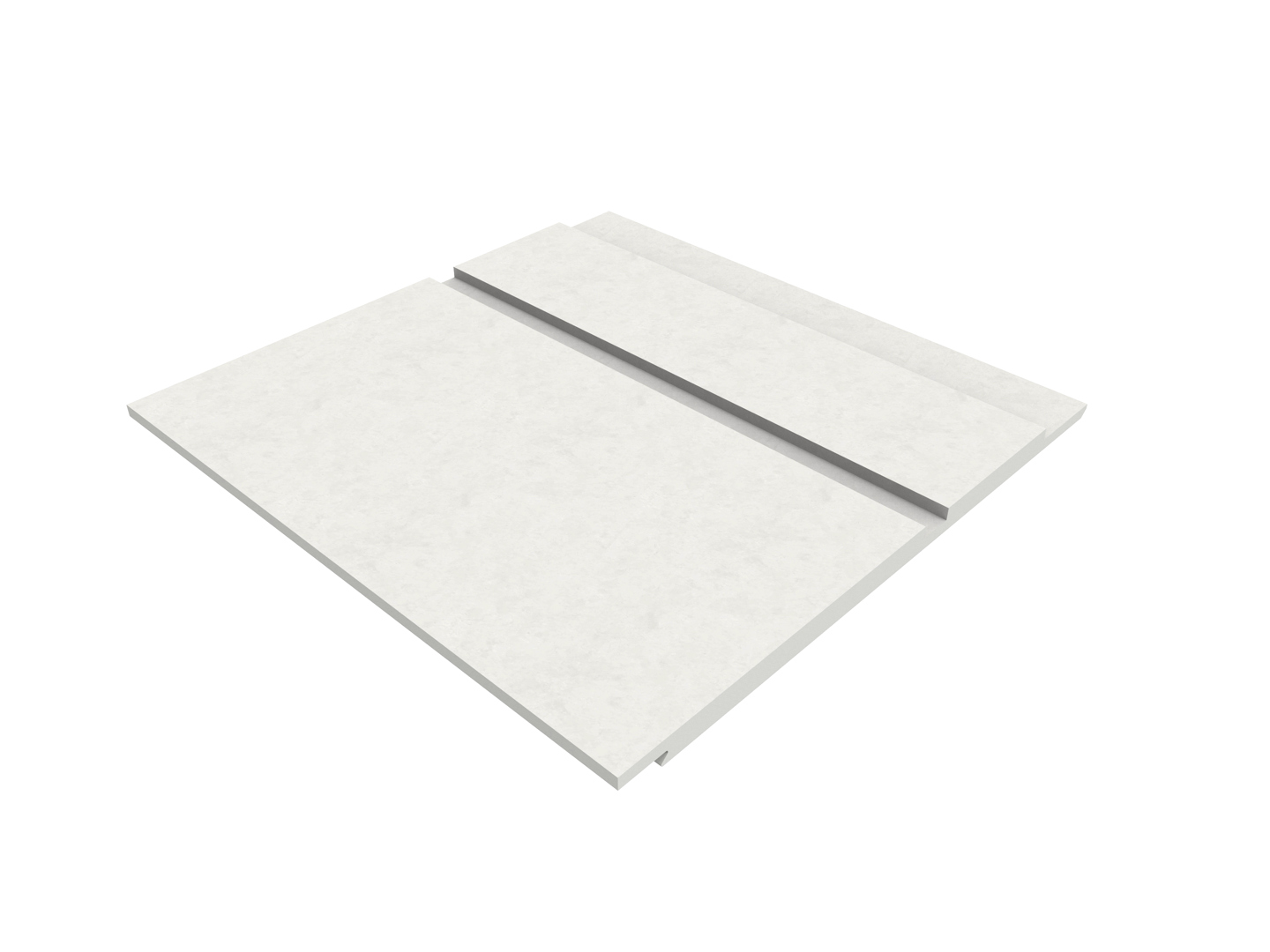

Stratum®

Duo Offset

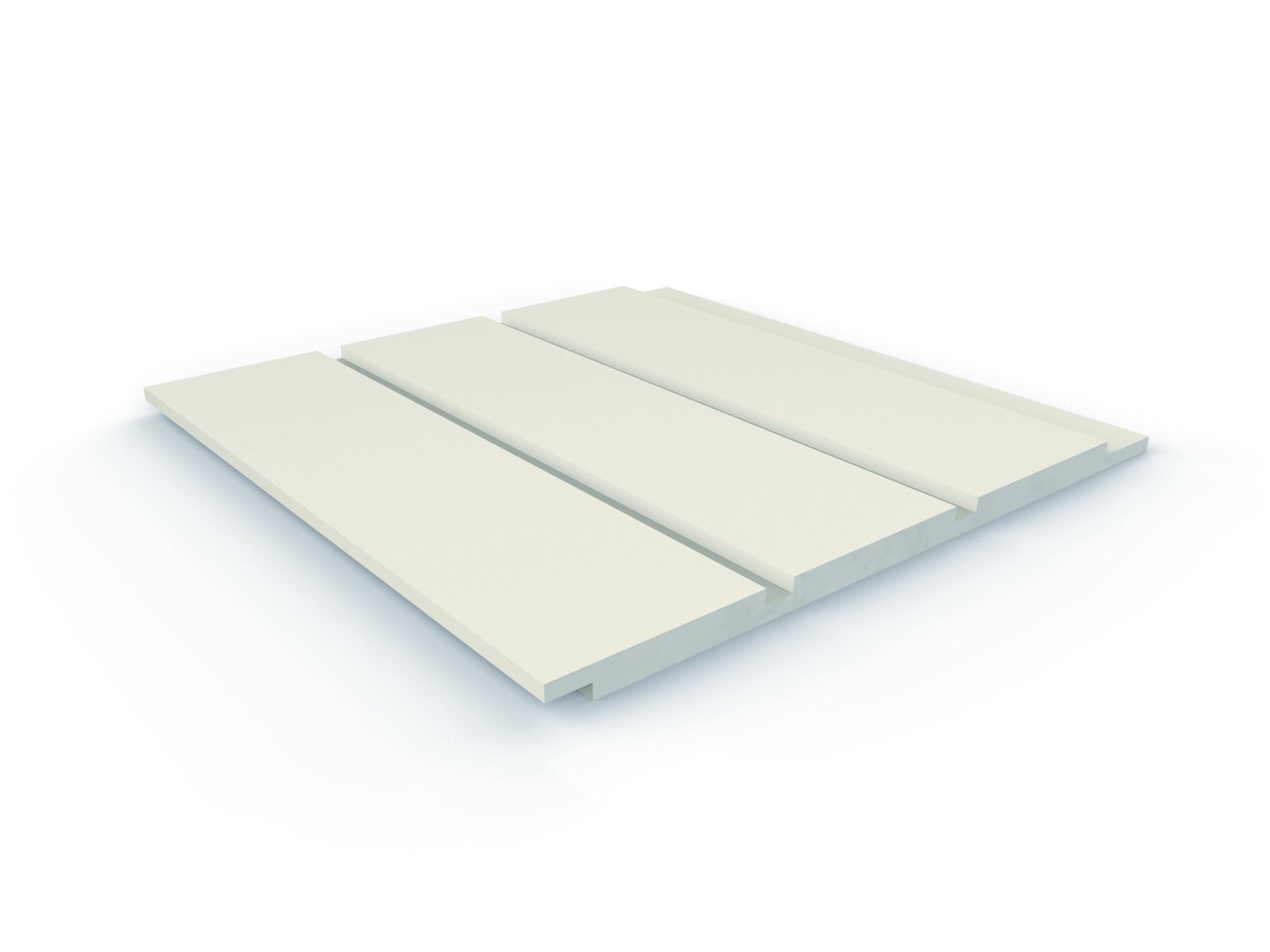

Stratum® Trio

A 300mm wide weatherboard with 2 x 16mm horizontal grooves.

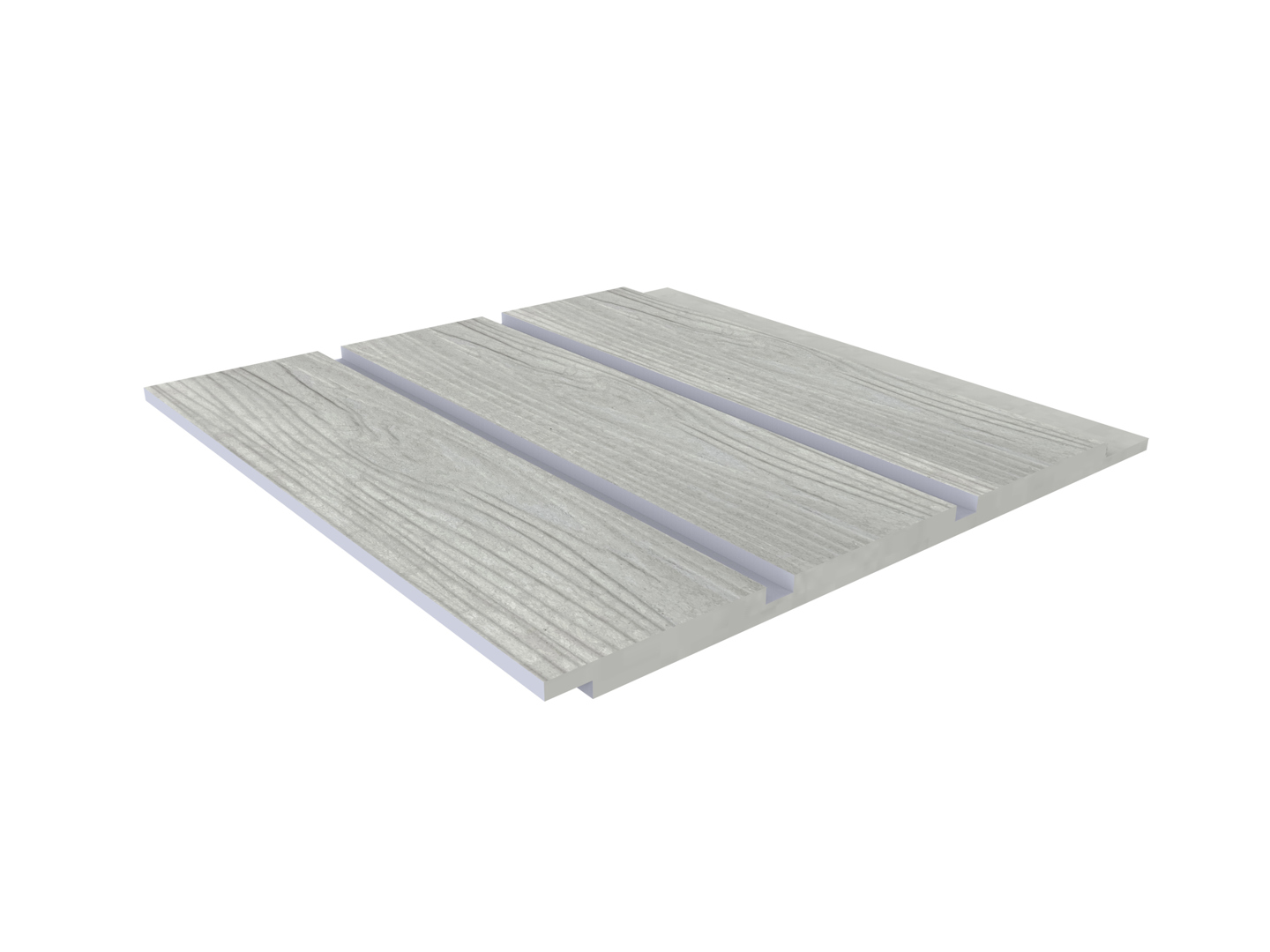

Stratum® Trio Woodgrain

A 300mm wide weatherboard with 2 x 16mm horizontal grooves embossed with a woodgrain pattern giving a timber like appearance.

Stratum®

No. of weatherboards	4200 x 175
Stratum	Weatherboard overlap 24mm
Stratum	Effective cover per weatherboard 4200 x 276mm or 1.159m2
1	300
2	576
3	852
4	1128
5	1404
6	1680
7	1956
8	2232
9	2508
10	2784
11	3060
12	3336
13	3612
14	3888
15	4164
16	4440
17	4716
18	4992
19	5268
20	5544
